Sheet Metal Materials Selector

The Sheet metal material selection during product design impact the sheet metal part design, manufacturing process, cost, and part performance. This is a short reference tool to help you choose the best material for your next sheet metal project. It specifies key characteristics such as tensile strength, elongation, and hardness to ensure you have the best material for your part’s application. It even includes details on material thickness and finish possibilities.

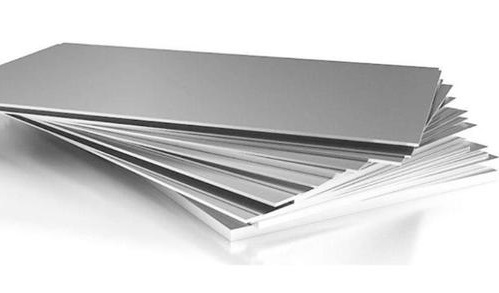

Sheet Metal Materials

There are various types of materials. Each material has its advantages, limitations, and applications. Product functional & aesthetic requirements and cost have an impact on the selection of a sheet metal material. Sheet metal material selection should be validated and tested according to the product design requirements.You should consider the following factors during the selection of sheet metal thickness and type of material.

  • Weight constraints.
  • Cost constraints.
  • Corrosion resistance requirements.
  • Assembly Process.
  • Availability of material.

Sheet Metal Thickness

Select sheet metal thickness according to the material properties, product size, weight constraints, and various loads acting on the product. The thickness of sheet metal materials has standard. You can perform Structural simulations and manual calculations to find the required sheet thickness.

Sheet metal material and sheet thickness are chosen simultaneously because the type of sheet metal material affects the thickness of the material sheet.

Sheet Metal Selection

The market offers a variety of sheet metal material grades. Material selection is influenced by product functional needs and the material’s physical and mechanical qualities. In addition, Sheet metal material qualities are affected by the rolling process (hot or cold). The following are some of the most prevalent sheet metal materials used in the business.

Stainless Steel Sheet (SUS)

Stainless steel plate, also known as stainless acid-resistant steel, is a corrosion-resistant alloy steel containing more than 10.5% chromium. It is a type of steel that is resistant to weak corrosive media such as air, steam, and water, as well as chemically corrosive media such as acid, alkali, and salt.

In practice, steel that is resistant to weak corrosive media is typically referred to as stainless steel, whereas steel that is resistant to chemical media corrosion is referred to as acid-resistant steel. Austenitic stainless steel is a form of stainless steel that is extensively used in sheet metal processing.

Common models: SUS304 (18-8 stainless steel, non-magnetic),  SUS301 (spring stainless steel, slightly magnetic),  SUS430 (magnetic, easy to rust).

Stainless Steel Sheet
Stainless Steel Sheet

Advantages:

  • Outstanding corrosion resistance
  • Easier to fabricate
  • Food grades are available
  • Excellent weldability

Disadvantages:

  • High cost
  • Less finishing options

Material properties:

  • Metallic white luster, the surface is not easy to rust, and can be divided according to the surface state: matte surface, bright surface, mirror surface, brushed surface, etc. To protect the surface, a PVC protective film is often attached.
  • Generally, no surface treatment is required. For baking paint, special surface treatment is required.
  • It is not suitable for electroplating, but electrolysis can be used.
  • Suitable for refrigeration, air conditioners, home appliances, and decorative structural parts.

Tensile strength: above 53kgf/mm².                              Material thickness: 0.1~10.0 mm.

Specific gravity: 7.95       Weight calculation: length (m) × width (m) × thickness (mm) × specific gravity = kilogram (kg)  such as:

  • SUS304  2.0×1220×2440  weight: 2.0×1.22×2.44×7.95 = 44.65kg

Cold Rolled Steel (SPCC、CRS)

Cold-rolled ordinary thin steel plate is the abbreviation of ordinary carbon structural steel cold-rolled plate. Cold-rolled steel is the most affordable sheet metal material on the market. In addition, it is the most commonly used metal material for sheet metal processing.

Therefore, it has excellent surface quality and high dimensional accuracy. Coupled with annealing treatment, its mechanical properties and process properties are good. But it is quite corrosive.

Cold Rolled Steel
Cold Rolled Steel

Material properties:

  •  Iron gray luster, the surface is easy to be scratched and rusted, and attention must be paid to protection and quick sequence during processing.
  • It is suitable for electroplating (colorful zinc plating, white zinc plating, nickel plating, tin plating), baking paint, powder spraying and other workpieces.

Advantages:

  • Excellent surface quality
  • Good strength
  • Outstanding weldability and dimensional precision
  • Low cost

Disadvantages:

  • Highly prone to corrosion
  • The final finish cost to prevent a part from corrosion is high
  • High weight

Hardness: HRB 1/2H = 74~89 1/4H = 65~80 1/8H=50~71 H = 89 or more

Tensile strength: above 28kgf/mm.               Material thickness: 0.25~3.2mm.

Specific gravity: 7.85.         Weight calculation: length (m) × width (m) × thickness (mm) × specific gravity = kilogram (kg)  such as:

          The weight of SPCC 2.0×1220×2440 is: 2.0×1.22×2.44×7.85 = 46.74 kg

Aluminium (AL,A1100P,A5052H32P,AL6061T6)

Aluminium Sheet, Aluminium is a silver-white light metal with good thermal conductivity, electrical conductivity and ductility. Pure aluminum has very low strength and cannot be used as a structural material. Aluminum alloy plates are generally used in sheet metal processing.

According to the content of alloy elements, aluminum plates can be divided into 8 series, 1000 series, 2000 series ~ 8000 series. Commonly used are 2000 series, 3000 series and 5000 series.

  • 2000 series is a kind of copper-aluminum alloy, which is characterized by high hardness, also known as hard aluminum; it can be used as various medium-strength parts and components。
  • 3000 series is a kind of manganese-aluminum alloy with good rust resistance, so it is also called hard aluminum. Anti-rust aluminum;
  • 5000 series is a magnesium-aluminum alloy with low density, high tensile strength and high elongation. The weight of aluminum-magnesium alloy is lower than other series under the same area.

Common models: A1100P-O (O stands for soft material, no hardness), A1050P, A5052H32P(good formability, excellent corrosion resistance), AL6061T6, AL6063T5…

Al5052 Aluminum Sheet
Al5052 Aluminum Sheet

Material properties:

  • Metallic white luster, the surface is easy to be oxidized and corroded, so the surface is often affixed with PVC protective film.
  • Surface treatment: it can be sandblasted, brushed, or polished first, and then anodized (non-conductive, can be dyed in various colors); chromate oxidation (also known as conductive oxidation, with primary color and golden yellow).

Advantages

  • Light weight
  • High weight to strength ratio
  • Good corrosion resistance
  • Excellent thermal and electrical conductivity

Limitations:

  • The high cost
  • Poor weldability

Tensile strength: A5052H32P=25kgf/mm² or more, A1100P, A1200P=7 kgf/mm² or more AL6061T6=27kgf/mm² or more

Material thickness: 0.3~20mm.

Specific gravity: 2.75

Weight calculation: length (m) × width (m) × thickness (mm) × specific gravity = kilogram (kg) such as:

  • The weight of AL 2.0×1220×2440 is: 2.0×1.22×2.44×2.75 = 16.37kg

Note:  Pay attention to the protection of aluminum plate processing, do not scratch the surface, and prevent cracks and folding knife marks when bending. (If the material is too hard, it can be annealed first or the lower die groove can be enlarged)

Hot-dip Galvanized Steel (SPGC)

GI sheets are CRCA sheets with a zinc coating. Corrosion resistance is improved by zinc coating. There are four different categories of GI sheets: ordinary (O), drawing (D), deep drawing (DD), and extra deep drawing (EDD).

There are numerous zinc plating thicknesses for galvanised steel. sheets that are 120gsm, 200gsm, 300gsm, or 600gsm, for instance. 200gsm refers to a zinc coating of 200 grammes per square metre. Grades of GI sheet are offered in accordance with IS 277:2003.

Hot-dip Galvanized Steel
Hot-dip Galvanized Steel

Material properties:

  • Metallic white luster with patterns, the surface is not easy to rust, but white rust spots will occur due to corrosion.
  • generally do not do surface treatment.
  • Can not do electroplating (colorful zinc plating, white zinc plating, nickel plating, tin plating…).
  • It is suitable for refrigeration, air conditioning, heavy motor and roof structural parts.

Advantages:

  • Good surface quality
  • Good Strength
  • Excellent dimensional precision
  • Better corrosion resistance

Disadvantages

  • Should not be welded
  • High weight
  • Higher cost than CRCA

Hardness: HRB 1/2H=74~89 1/4H=65~80 1/8H=50~71 H=89 or more

Tensile strength: above 40~55kgf/mm².        Material thickness: 0.4~3.2mm.

Specific gravity: 8.25

Weight calculation: length (m) × width (m) × thickness (mm) × specific gravity = kilogram (kg) such as:

The weight of SPGC 2.0×1220×2440 is: 2.0×1.22×2.44×8.25 = 49.1kg

NoteIf you want to bend, pay attention to whether the zinc layer on the surface falls off, and remove the zinc powder of the lower mold in time.

Hot Rolling Steel (SPHC、HRS)

Hardness: HRB 1/2H=74~89 1/4H=65~80 1/8H=50~71 H=89 or more

Tensile strength: above 41~52kgf/mm.

Material thickness: 1.4~6.0mm. Material code above 6mm is SS41

Material properties:

  • Black-gray luster, the surface is not easy to be scratched, but easy to rust, which must be removed during processing.
  • It is not suitable for electroplating (colorful zinc plating, white zinc plating, nickel plating, tin plating…).
  • It is suitable for structural parts such as baking paint and powder spraying.

Specific gravity: 7.85.

Weight calculation: length (m) × width (m) × thickness (mm) × specific gravity = kilogram (kg) such as:

The weight of SPHC 2.0×1220×2440 is: 2.0×1.22×2.44×7.85=46.74kg

                        SPHC1.0×1000×2000 weight is: 1×1×2×7.85=15.7kg

Note:

  • If electroplating is to be done, sandblasting or wire drawing must first remove the surface carbonized layer.

Copper (C1020, C1100, C2100, 2200, 2300, 2400, C2600)

Common models: C1020P-O (O stands for soft material, no hardness), C1020P-1/2H (Vickers hardness HV75~120) 1/4H HV=60~100 H HV=80 or more

Tensile strength: O material=20kgf/mm² or more, 1/4H material=22~28 kgf/mm² 1/2H material=25~32kgf/mm², H material=28 kgf/mm² or more

Material thickness: more than 0.3mm

Material properties:

  •  #1xxx has a copper content of 99.9%, (also known as electrolytic copper or confluence copper) with excellent electrical and thermal conductivity, good drawing processability, good weldability, corrosion resistance, weather resistance, and metallic red luster. Suitable for electrical and chemical industries.
  • #2xxx contains 60 to 96% copper, (also known as brass or confluence copper) ductility, processability, and electroplating properties are commonly used in wiring equipment, instrument panels, bullet casings, etc.
  • Surface treatment: it can be drawn first, or polished and then pickled, copper-plated, tin-plated, and nickel-plated.

Specific gravity: 8.9

Weight calculation:  length (m) × width (m) × thickness (mm) × specific gravity = kilogram (kg) , such as:

              C1020P1/4H 2.0×600×1500 Weight: 2.0×0.6×1.5×8.9 = 16kg

              C1020P1/2H 1.0×1000×1000 Weight: 1×1××8.9 = 8.9kg

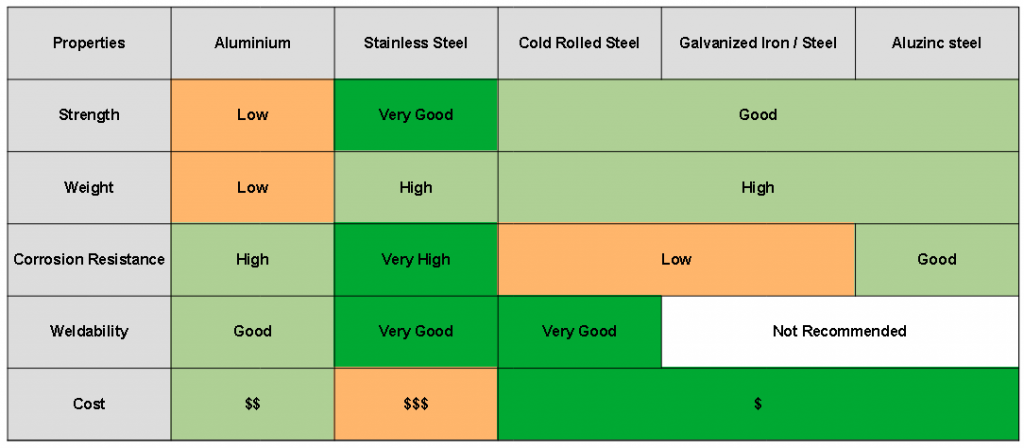

Comparison of Sheet Metal Material

Sheet Metal Materials Summery

To summarise, a wide range of sheet metal material grades are available. You can select materials based on the parts funcational needs and cost.
