Since its emergence, rapid prototyping (RP) technology has attracted widespread attention across the manufacturing sector. Its ability to compress development timelines while reducing costs has made it indispensable in modern product development. Over the years, a broad range of RP methods and rapid tooling technologies has evolved alongside it, delivering measurable benefits to industries ranging from machinery and automotive to medical devices and aerospace.
Industry data shows that the consumer goods and automotive sectors account for more than 50% of total RP demand, while adoption in the medical field continues to grow rapidly. Academic research institutions, the aerospace sector, and defense applications also represent a significant and expanding share of RP usage.
Looking at how RP is actually used, design visualization, assembly verification, and functional modeling (Fit/Form/Function testing) collectively account for nearly 60% of all applications. Rapid tooling — the use of RP to produce molds and tooling quickly — represents the next largest segment.
Application in product design
Modern product development relies heavily on the integration of CAD and CAM software, supported by numerical control (CNC) equipment. While this integration has significantly raised development efficiency and quality, a persistent gap has always existed between the design stage (CAD) and actual manufacturing (CAM) — a design can rarely be considered truly final before a physical part is produced. Rapid prototyping bridges that gap.
As a result, RP found its earliest and most enduring applications in three areas of the product design phase: aesthetic evaluation, assembly verification, and functional testing. These use cases remain the backbone of RP demand today.
Design optimization
Modern industrial design spans an enormous range of products — from a ballpoint pen to a commercial aircraft. Each type of product calls for a different design approach. Geometrically straightforward mechanical parts can often be modeled directly in CAD software and produced via CNC machining, with motion simulation carried out through the dynamics engine of a 3D application.
For products with complex freeform surfaces — everyday small appliances, for instance — the designer has two viable paths. The first is to model the surface directly in software using interpolation algorithms to smooth and correct the geometry, then output directly to an RP machine. The second approach is particularly well-suited to artistic or organically shaped products: a modeler first sculpts the form in clay or another material, the physical model is then digitized using 3D scanning equipment, and the resulting data is used to drive an RP system.
Attempting to construct such organic forms directly in CAD often proves slow and inflexible; subsequent design changes become cumbersome. By contrast, starting from a physical sculpture, scanning it, and then refining the digital data dramatically accelerates the iteration cycle.
Design Review and Team Collaboration
Physical prototypes play a central role in design reviews. While 2D drawings dominate the early creative stages, as a design matures, the team needs something more tangible to discuss — a physical model that every stakeholder can examine, hold, and evaluate from multiple angles.
A 1:1 scale prototype offers something a flat drawing simply cannot: it communicates proportions, surface quality, ergonomics, and assembly relationships instantly and intuitively. Consider the design of a computer mouse: producing several physical variants at full scale allows designers to hold each one, compare how they feel in the hand, and arrive at decisions grounded in real user experience rather than speculation. This type of hands-on evaluation is irreplaceable at the design table.
Functional Testing
Producing multiple prototypes of the same product enables a range of functional tests. These models can simulate the final product’s form — both its external geometry and its internal structure — giving designers the most direct possible understanding of how the finished article will behave.
When a prototype is built from a material with appropriate mechanical properties, it can replicate the internal structure of the final product closely enough to evaluate structural integrity, verify wall thicknesses, and confirm that moving parts operate smoothly.
Prototypes are also used for aerodynamic testing. In the development of high-speed vehicles — automobiles, high-speed trains, or spacecraft — a full-scale prototype can be placed in a wind tunnel for empirical aerodynamic analysis, providing data that would be costly or impossible to obtain purely through simulation.
Cost Reduction
A design flaw caught during prototyping might cost a few hundred dollars to fix. The same flaw discovered after a production run has been launched — and products have reached customers — can result in losses orders of magnitude greater, sometimes with consequences that are difficult to recover from. Catching problems early is not just efficient; it is essential.
Through the careful use of prototypes, a product’s final dimensions, structural configuration, material selection, and appearance can be confirmed at a fraction of the cost of a full production run. Ergonomic testing, volume estimation, and weight calculations can also be performed at this stage, informing packaging specifications, logistics costs, and raw material budgets. When the estimated cost of a product drifts above the target, prototyping allows the team to identify where adjustments need to be made before any tooling investment is committed. In this sense, prototyping is one of the most effective cost-control tools available to a product development team.
Market Research and Validation
A physical prototype communicates a product’s value to a potential customer far more effectively than a flat panel display, a brochure, or a 3D animation. It conveys shape, color, scale, material texture, and function simultaneously — and it can be placed in a customer’s hands. Trade shows and customer trials become significantly more productive when a real model is present.
Multiple design directions can be turned into prototypes and distributed for market feedback. Sending prototypes to different regions or customer groups yields richer, more nuanced market data than any survey or render can provide. This allows the team to anticipate how the end consumer will respond to the product — before committing to mass production.
Using Prototypes as Master Patterns for Rapid Tooling
One of the most strategically valuable applications of rapid prototyping is its use as a master pattern for producing rapid economic molds. These include soft tooling options — such as silicone rubber molds, polyurethane molds, and metal spray tooling — for small-batch trial production, as well as harder tooling options — such as epoxy molds and metal-filled composite molds — for higher-volume production runs. Using RP parts as master patterns extends the economic value of the technology well beyond the design phase.

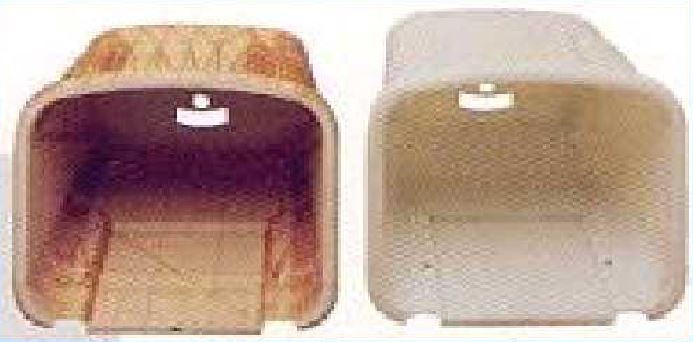

1. Silicone Rubber Molds
Silicone rubber tooling — the foundation of urethane vacuum casting — excels in low-volume production scenarios involving fine surface detail, zero draft angle, or even reverse draft — geometries that would be prohibitively expensive to machine conventionally. Almost any rapid prototype can serve as the master pattern for a silicone mold. The process involves embedding the RP master in liquid silicone, curing it, and then splitting the mold to produce a flexible cavity ready for casting.

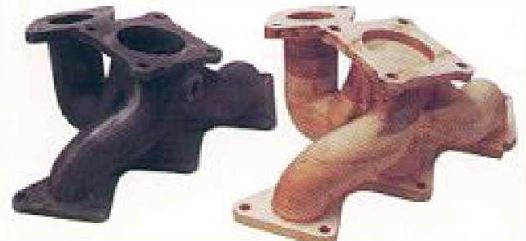

2. Wooden Patterns for Sand Casting
Traditionally, wooden patterns for sand casting were produced entirely by hand — a time-consuming process offering limited dimensional accuracy. Rapid prototyping provides a far faster and more precise alternative, particularly for complex geometries derived from CAD data. The RP-produced pattern matches the CAD model exactly, eliminating the dimensional uncertainty inherent in manual pattern-making.

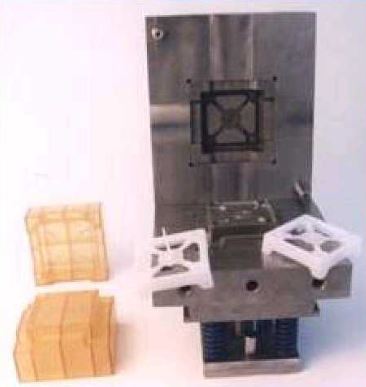

3. Epoxy Resin Molds
Epoxy tooling occupies the middle ground between silicone rubber molds and full steel tooling. It offers lower cost than hard metal tooling while producing considerably more parts than silicone before wearing out — mold life typically reaches several hundred shots. As with silicone tooling, the RP master pattern determines the surface quality and dimensional accuracy of the final parts. When combined with additional reinforcing materials, epoxy molds can achieve dimensional tolerances in the range of ±0.1 mm.
Applications in Casting
Since the advent of rapid prototyping, its adoption in the casting industry has grown steadily. Particularly in investment casting and similar precision processes, RP technology has delivered significant cost and time savings for single-piece and small-batch production.
In traditional casting operations, the production of patterns, core boxes, wax molds, and die-casting tooling has long relied on CNC machining — often requiring manual fitter work to reach final dimensions. This approach is expensive, slow, and struggles with thin-walled parts of high geometric complexity, such as turbine blades, marine propellers, and automotive cylinder heads. Even where advanced CNC equipment has been adopted, programming complexity and long cycle times remain significant obstacles. Rapid prototyping addresses these challenges directly.
RP technology is applied to casting in three principal ways:
Direct Casting from RP Patterns
For single-piece or very low-volume production of complex parts — specialized aerospace components, for example, or one-off castings for trial purposes — the RP pattern is used directly. It can be burned out using investment casting shell techniques, or used in lost-foam casting to produce the casting in a single step.
RP Patterns as Intermediate Masters
When a larger number of castings are required, the RP pattern first serves as a master from which secondary molds (silicone rubber, plaster, or similar) are produced. These secondary molds are then used to generate wax patterns or direct castings. SLS-sintered polycarbonate patterns are particularly effective in this role, offering superior dimensional stability and surface quality compared to paraffin-based RP patterns. Major automotive manufacturers have leveraged this approach: Chrysler Corporation has used SLS-produced wax patterns to cast complex intake and exhaust manifolds, while General Motors has applied the technique to produce intricate spacecraft components.
RP Patterns for Production Tooling
The most widely used application is the production of durable tooling from RP masters, enabling mass production of castings. Ford Motor Company, for example, used the LOM process to produce an 685 mm crankshaft pattern — split into three sections for pattern-making, then assembled as a sand casting template — achieving a dimensional accuracy of ±0.13 mm.
Investment Casting
Investment casting — also known as lost-wax casting — is a near-net-shape precision process applicable to virtually any castable alloy. It is especially valued for thin-walled components with complex internal or external geometry. The arrival of rapid prototyping technology has significantly extended what is achievable in investment casting, enabling faster pattern production, higher geometric complexity, and tighter dimensional tolerances.
The QuickCast process developed by 3D Systems exemplifies this synergy. By producing hollow, lattice-reinforced SLA patterns with minimal residual ash content, QuickCast allows patterns to be burned out cleanly in standard investment casting shells — combining the design freedom of RP with the material quality of traditional precision casting.
Summary
As manufacturing technology continues to advance, rapid prototyping processes are becoming faster, more accurate, and more accessible. Production costs continue to fall, expanding the range of projects — from one-off prototypes to low-volume manufacturing runs — for which prototyping is economically justified.
Against this backdrop, the strategic role of prototyping in the full product development lifecycle deserves greater emphasis. When used thoughtfully, prototyping compresses iteration cycles, reduces R&D risk, enables more informed design decisions, and ultimately raises the quality of the final product. For any organization serious about efficient, competitive product development, rapid prototyping is not an optional step — it is a core capability.
