DFM (Design for Manufacturability) for injection molding is the process of reviewing and optimizing a plastic part design before mold cutting begins. Done correctly, DFM reduces tooling costs by 20–40%, cuts T1 sampling iterations from 5+ down to 1–2, and prevents the most expensive type of problem: discovering a design flaw after steel has been machined.
This guide covers every major DFM principle, with real before/after case studies from RpProto’s engineering team and a printable 30-point DFM checklist.
Why DFM Matters
DFM (Design for Manufacturability) reports are of great value in the product development and production process. Its main functions can be summarized as follows:
Confirm and optimize product design: DFM reports ensure that product designs meet manufacturing requirements and explore possible improvement plans by analyzing the feasibility of designs in the manufacturing process. It helps identify and solve design problems that may cause manufacturing difficulties or excessive costs, thereby discovering problems in design, appearance, function, processing, etc. in advance and making suggestions for improvement.
Reduce manufacturing costs: An important goal of DFM reports is to reduce the waste of materials and resources by optimizing the design and manufacturing process, reasonably arrange the manufacturing process, and avoid manufacturing difficulties and problems, so as to achieve the purpose of reducing product manufacturing costs. This not only improves production efficiency, but also reduces overall costs.
Improve production efficiency: DFM reports can make parts and various processes easy to manufacture and improve production efficiency. For example, in plastic mold manufacturing, DFM reports cover the entire process from design to production, including the confirmation of the pouring position, the parting line of the product, and the mold structure analysis, to ensure that the final DFM report is complete and accurate.
Improve product quality: Through DFM inspection, problems that may cause defects in the production process can be solved before formal assembly production, thereby ensuring the smooth progress of patch assembly production and a significant increase in product output.
Shorten the development cycle: DFM emphasizes “getting things right the first time”, reducing the generation of process design changes, thereby shortening the development cycle. For companies, this means bringing products to market faster and improving competitiveness.
The cost economics of DFM are straightforward:
| Stage When Problem Found | Average Cost to Fix |
|---|---|
| Design (before DFM sign-off) | $50 – $500 |
| Prototype / DFM Review | $500 – $5,000 |
| After T1 sampling (mold already cut) | $5,000 – $50,000 |
| During production (field recall) | $100,000+ |
At RpProto, every injection molding project begins with a structured DFM review led by senior engineers. This process saved our customers thousands of dollars per project in avoided re-tooling costs, and reduced average T1-to-approval cycle time.
Key Insight
RpProto’s DFM Workflow for Injection Molding
Before mold design begins, RpProto’s engineering team conducts a formal DFM review. The workflow is structured around five stages:
- Customer submits 3D CAD (STEP / IGES / SolidWorks / CATIA)
- Senior engineer reviews geometry against 12 DFM criteria (detailed in Sections 3–5)
- DFM report delivered within 48 hours, flagging critical issues with annotated screenshots
- Customer revises design; optimized CAD confirmed before quotation is finalized
- Mold design and tooling begin only after DFM sign-off
This process typically adds 1–3 business days to project start time. Based on 2024 project data, it reduces total project timeline by an average of 12 days by eliminating mid-production design changes.
Core DFM Principles Applied at RpProto
For a practical introduction to these rules, see our injection molding design guidelines.
Wall Thickness: Keep It Uniform
Critical Defect Risk
Abrupt wall transitions (e.g., jumping from 1.5mm to 4mm) create differential cooling rates that cause warpage, sink, and residual stress. This is one of the top root causes of part failure in high-volume production.
The target wall thickness depends on material, but a practical range for most engineering thermoplastics is 1.5mm to 3.5mm. Transitions between sections should be gradual — a 3:1 taper ratio is a reliable guideline. Ribs and bosses should be sized at 50–60% of the nominal wall to prevent sink on the visible surface opposite them.
Best practices:
- Keep wall thickness as uniform as possible, and keep all walls within 25% of nominal thickness wherever possible
- When transitions between thin and thick sections are unavoidable, use a gradual taper (minimum 3:1 length-to-thickness ratio)
- Cored-out sections are preferable to solid thick bosses — they maintain appearance and reduce cycle time
| Material | Rec. Wall Range | Min Wall |
|---|---|---|
| ABS | 1.5 – 4.5 mm | 0.76 mm |
| Polypropylene (PP) | 1.0 – 3.8 mm | 0.6 mm |
| Polycarbonate (PC) | 2.0 – 3.5 mm | 1.0 mm |
| Nylon (PA66) | 1.5 – 3.0 mm | 0.8 mm |
| POM / Acetal | 1.5 – 3.0 mm | 0.8 mm |
| PEEK | 1.0 – 2.5 mm | 0.5 mm |
RpProto Tip
Draft Angles

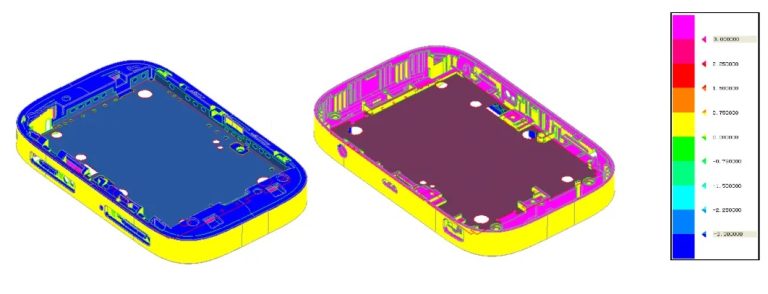

Draft angles allow the molded part to release cleanly from the mold cavity without drag marks, scratches, or surface tearing. Parts with zero draft on tall walls will stick to the mold and require damaging force to eject.
| Surface Condition | Minimum Draft Angle |
|---|---|
| Polished / Class A surfaces | 0.5° per side |
| Semi-gloss / standard finish | 1.0° per side |
| Light mold texture (MT-11000) | 1.5° per side |
| Heavy mold texture (MT-11020) | 3.0° – 5.0° per side |
| Deep cavities (>75 mm depth) | 2.0° per side minimum |
As a general rule of thumb, aim for draft angles of at least 1 to 2 degrees per side for most materials. For parts with a textured surface, consider increasing the draft angle to prevent the texture from getting damaged during ejection. The right draft angles enhance mold durability and reduce production delays.
General draft guidelines:
Minimum 1° per side for textured surfaces
0.5°–1° per side for polished surfaces
More draft for deep cavities
Adding draft early costs nothing. Adding it after mold steel is cut can be expensive or impossible.
Rib and Boss Design
Ribs and bosses are common features in injection-molded parts that add strength without increasing weight. However, improper design of these features can lead to issues like sink marks or voids.

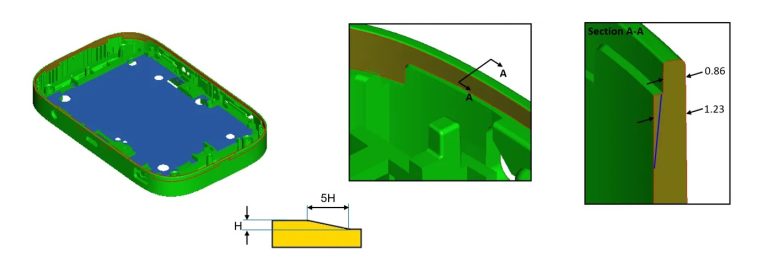

When designing ribs, keep the thickness between 50-60% of the nominal wall thickness to avoid sink marks. For bosses, make sure they are properly supported and avoid overly thick walls, which can cause cooling problems and increase cycle times.
Properly placed ribs can also enhance rigidity without adding too much mass. And when it comes to bosses, making sure they’re hollow and adequately supported can help maintain the structural integrity of the part while improving manufacturability. Good rib design maintains strength while keeping cooling balanced.
Rib design rules:
| Feature | Design Rule |
|---|---|
| Rib thickness | 40–60% of nominal wall thickness |
| Rib height | Maximum 3× wall thickness |
| Rib base fillet | Minimum 0.25× rib thickness (R0.25T) |
| Boss outer diameter | ≤ 2× boss wall thickness |
| Boss wall thickness | 40–60% of nominal wall |
| Boss to wall gap | Minimum 2× nominal wall thickness |
Common Mistake
Bosses placed directly against outer walls with no gap create thick junctions that always sink. RpProto’s standard fix is to gusset the boss with thin connecting ribs to the outer wall, maintaining the structural connection while controlling thickness.
Advanced DFM Principles
Undercuts: Identify and Eliminate or Manage Them
An undercut is any feature that cannot be formed by the two main mold halves opening in a straight line. Examples include side holes, threads, clips, recesses on side walls, and snap-fit hooks.
Undercuts require additional mold components — side actions, lifters, or collapsible cores — each of which adds $500–$5,000 per feature to tooling cost and extends lead time by 1–2 weeks.
- Side action (cam/slider): Used for side holes, external recesses. Adds $800–$3,500 to tooling cost per action.
- Lifter: For internal undercuts, threaded holes, or snap fits. Adds $600–$2,500 per lifter.
- Hand-loaded insert: For low-volume parts, manually placed inserts avoid permanent mold actions. Adds $0.50–$2.00 per cycle in labor.
- Redesign to eliminate: Often the most cost-effective option — convert a side hole to a pocket, or redesign a snap fit to a compliant beam.
RpProto DFM Practice
Parting Lines: Placement and Cosmetic Impact
The parting line is the seam where the two mold halves meet. Every injection-molded part has a parting line — the only question is where it is placed and how it affects the part’s appearance and function.
- Parting lines on cosmetic surfaces create visible witness marks that require additional post-processing (trimming, sanding)
- Stepped or curved parting lines (‘shut-off surfaces’) are more complex to machine and seal, increasing mold cost and the risk of flash
- Parting lines should ideally fall at sharp geometric transitions (edges, corners) where they are least visible
- Sharp corners at the parting plane reduce tool wear and improve sealing — RpProto recommends minimum 0.3 mm radius at all parting edges
For optical or Class-A surface parts, RpProto’s DFM process includes a dedicated parting line proposal before mold design begins, with annotated 3D screenshots showing exactly where witness marks will appear.
Gate Placement and Type
Gate location plays a significant role in the injection molding process, impacting how the material flows into the mold and cools. Poor gate placement can lead to defects like weld lines, sink marks, or air traps.
It’s important to ensure the gate is located in a spot that facilitates smooth, consistent material flow. Ideally, gates should be positioned where they allow the material to fill the mold without causing flow imbalances or defects in critical areas of the part.
| Gate Type | Best Used For |
|---|---|
| Pin gate (submarine) | Small to medium parts; gate vestige hidden on underside |
| Edge gate | Flat or box-shaped parts; easy to trim, visible on edge |
| Hot runner / direct gate | High-volume production; no waste, no vestige |
| Fan gate | Wide flat parts where flow balance is critical |
| Tunnel gate | Auto-degating; clean appearance; requires softer materials (PP, PE) |
- Position gates to fill from thick to thin — plastic flows from high to low resistance
- Weld lines (where two flow fronts meet) should be placed away from structural stress zones and cosmetic surfaces
- For glass-filled materials, weld lines represent significant strength reductions — gate location must minimize weld lines in load-bearing areas
- RpProto uses Moldflow simulation on all Class-A parts and structural parts to predict weld line locations before mold cutting
Cooling Channel Design
Cycle time is primarily determined by how fast the part can cool to ejection temperature. Cooling channel design is one of the most underrated aspects of DFM — yet it directly determines 60–70% of your total cycle time.
- Cooling channels should be positioned 2–3× the channel diameter from the cavity surface
- Channel spacing should be 3–5× channel diameter (typically 8–12 mm diameter channels at 24–40 mm spacing)
- Uniform cooling across the cavity prevents differential shrinkage and warpage — the most common cause of flatness failures
- Conformal cooling (3D-printed copper inserts following part geometry) can reduce cycle time by 30–50% on complex shapes
Data Point
Ejection System Design
How a part is ejected from the mold is as important as how it is formed. Improper ejection causes distortion, surface damage, and white stress marks in the ejected area.
- Ejector pins should be placed on structural surfaces, not cosmetic faces — pin marks are always visible
- Pin diameter and quantity must distribute force to avoid local deformation — thin-walled parts require more pins of smaller diameter
- Ejector sleeves (hollow pins around bosses) provide clean ejection of cylindrical features
- Stripper plates are preferred for thin-walled containers and caps — they distribute force across the entire perimeter
- Parts with zero draft cannot be safely ejected — ejection force on a zero-draft, textured wall can exceed the part’s yield strength
Shrinkage and Dimensional Compensation
All thermoplastics shrink to some extent as they cool and solidify in the mold. The amount of shrinkage varies depending on the material, so it’s essential to factor this into your design. Failing to account for shrinkage can result in parts that don’t meet dimensional specifications, leading to wasted material and time.
By working closely with your mold manufacturer and material supplier, you can better predict the shrinkage rate for your chosen material and design your part accordingly. Some materials shrink more in specific directions (anisotropic shrinkage), so understanding these characteristics is vital.
| Material | Typical Volumetric Shrinkage |
|---|---|
| PP (Polypropylene) | 1.5 – 2.0% |
| ABS | 0.4 – 0.7% |
| PC (Polycarbonate) | 0.5 – 0.7% |
| PA6 (Nylon, dry) | 0.7 – 1.2% |
| PA6 (Nylon, conditioned) | 1.5 – 2.0% |
| POM (Delrin/Acetal) | 1.8 – 2.5% |
| Glass-filled PA66 (30%) | 0.2 – 0.5% |
RpProto recommends Moldflow analysis to predict actual shrinkage before mold cutting.
Material Selection and Mold Steel
Matching Material to Application Requirements
| Requirement | Recommended Material Options |
|---|---|
| Impact resistance (general) | ABS, PC/ABS blend, PC |
| Chemical resistance | PP, HDPE, POM |
| High temperature (>120°C) | PA66-GF, PPS, PEEK |
| Optical clarity | PC, PMMA (Acrylic), COP |
| Low cost, commodity parts | PP, HDPE, ABS |
| Food contact / FDA compliance | PP, HDPE, PETG |
| Fatigue / snap-fit performance | POM, PP, PA |
Mold Steel Selection
Mold steel choice is a DFM decision that affects tooling cost, mold life, and surface finish capability. The right steel depends on expected production volume, material being molded, and surface finish requirements.
| Steel Grade | Hardness | Best For |
|---|---|---|
| P20 (pre-hardened) | 28–32 HRC | Low–medium volume (<100k shots), prototype tooling |
| 718H (NAK80 equiv.) | 38–42 HRC | Medium volume (100k–500k shots), polishable |
| H13 (tool steel) | 44–48 HRC | High volume (>500k shots), abrasive materials |
| S136 / 420SS (stainless) | 48–52 HRC | Corrosive materials (PVC, PC), optical parts |
| Beryllium copper inserts | — | Rapid cooling in critical areas |
RpProto’s in-house injection mold making capabilities cover P20 to S136 tooling for all production volumes.
Cost vs. Life Trade-off
P20 steel tooling costs approximately 30–40% less than H13 for an equivalent mold, but will begin to show wear at around 100,000–200,000 shots. For a production run of 500,000+ parts, investing in H13 or S136 from the start avoids a mid-production mold refurbishment that can cost $15,000–$80,000 and delay production by 3–6 weeks.
Real DFM Case Studies: Before & After
The following case studies are drawn from RpProto’s 2023–2025 project archive. Customer names and part details have been generalized for confidentiality.
📋 Case Study 1: Consumer Electronics Enclosure — Sink Marks Eliminated
Problem: A two-part ABS enclosure (160 × 80 × 30 mm) had multiple boss locations adjacent to the outer wall, with no gap between boss and wall. Wall thickness varied from 1.5 mm to 5.2 mm at boss junctions. T1 sample showed severe sink marks on the cosmetic outer surface directly opposite each boss.
DFM Solution: DFM review proposed: (1) adding 1.5 mm gaps between each boss and the outer wall, (2) reducing boss wall thickness to 60% of nominal wall (from 3.5 mm to 1.5 mm), (3) adding gusset ribs to maintain boss rigidity. All changes were made in CAD within 2 days.
Result: T1 sample after redesign showed zero sink marks. No cosmetic post-processing required. Total tooling rework avoided: $12,000. Project delivered 3 weeks ahead of original schedule.
📋 Case Study 2: Medical Device Housing — Undercut Redesign Saves $8,200
Problem: Medical device housing for a handheld diagnostic device included four side-facing snap-fit hooks on the long walls. Each hook required a dedicated side action in the mold. Initial mold quote: $36,800 due to 4× side action mechanisms.
DFM Solution: RpProto DFM team proposed converting the side snap-fits to compliant beam snap-fits on the top and bottom faces (within the main draw direction). This eliminated all four side actions. An alternate option — using manual hand-loaded inserts for a 50,000-unit run — was also provided as a comparison.
Result: Customer adopted the compliant beam redesign. Final mold cost: $28,600 (saving $8,200). Side action maintenance costs eliminated. No change to snap-fit retention force (both designs met 18 N pull-out spec).
📋 Case Study 3: Automotive Interior Trim — Weld Line Relocation Prevents Field Failure
Problem:A glass-filled PA66 clip bracket for automotive door trim had a through-hole at its center — which caused a weld line to form directly at the highest stress concentration in the part. Moldflow analysis showed weld line tensile strength was 35% lower than base material.
DFM Solution:Gate location was moved from the end of the part to a center-fed hot runner design, relocating the weld line to a low-stress zone at the part edge. Secondary Moldflow run confirmed weld line moved 28 mm away from the stress concentration.
Result:Bracket passed all fatigue testing without modification. Original design failed at 4,200 cycles; revised design exceeded 50,000 cycles without failure. Avoided potential field recall and liability exposure.
📋 Case Study 4: Consumer Appliance Lid — Cycle Time Reduction via Cooling Optimization
Problem: Blender lid (200 mm diameter, 3.0 mm nominal wall) had a straight-line cooling circuit that created a 22°C temperature differential between the gate side and the far side of the part. This caused consistent warpage (1.8 mm bow on a 200 mm part) and a 52-second cycle time.
DFM Solution: DFM cooling redesign added a baffled circuit on the cavity side, with a bubbler insert in the core. Temperature differential reduced to 4°C across the cavity.
Result: Cycle time reduced from 52 to 31 seconds (40% reduction). Warpage reduced from 1.8 mm to 0.3 mm (within spec). At 2 million annual units, the cycle time saving equates to 12,000 machine hours freed per year — equivalent to a second shift on one machine.
Common DFM Mistakes and How to Avoid Them
| DFM Mistake | Frequency | Typical Cost Impact |
|---|---|
| Wall thickness inconsistency (>25% variation) | Most common | $2,000–$15,000 in rework or cycle time |
| Missing or insufficient draft angles | Very common | $3,000–$20,000 mold rework |
| Undercuts not identified until mold design | Common | $5,000–$30,000 per unplanned side action |
| Boss/rib thickness exceeding 60% of wall | Common | $0 to fix in design; expensive after T1 |
| Gate location on cosmetic surface | Moderate | Post-process labor or mold modification |
| No allowance for anisotropic shrinkage | Moderate | Dimensional failures, re-cut required |
| Parting line on Class-A surface | Moderate | Additional polishing; sometimes mold rebuild |
| Cooling circuit not reviewed | Less common | 20–50% cycle time penalty |
Prevention Principle
Every item in this table can be caught and corrected in a DFM review that takes 1–3 days. None of them can be fixed cheaply after the mold is cut. The DFM review is the cheapest insurance you can buy on an injection molding project.
DFM Checklist for Injection Molding
Use this checklist during the design phase before submitting files for quotation. Items marked with ★ are the highest-priority checks — errors here most frequently require mold rework.
| ✓ | ★ Wall Thickness (Critical) |
|---|---|
| ☐ | Nominal wall thickness defined and documented for each material |
| ☐ | All walls within 25% of nominal thickness |
| ☐ | No sudden thick-to-thin transitions without gradual taper (3:1 min ratio) |
| ☐ | Cored-out bosses and ribs — no solid thick sections |
| ✓ | ★ Draft Angles (Critical) |
|---|---|
| ☐ | All vertical surfaces have minimum 0.5° draft (polished) or 1° draft (standard) |
| ☐ | Textured surfaces have draft ≥ 1.5° per side (verify with mold texture spec sheet) |
| ☐ | Deep cavities (>50 mm) have increased draft — 1° per 25 mm depth minimum |
| ☐ | No zero-draft surfaces in the direction of mold opening |
| ✓ | ★ Undercuts (Critical) |
|---|---|
| ☐ | All undercuts identified in 3D review (side holes, clips, threads, recesses) |
| ☐ | Each undercut assigned to: eliminate / lifter / side action / hand insert |
| ☐ | Tooling cost and lead time impact of each undercut estimated |
| ☐ | Snap-fit geometry reviewed — compliant beam preferred over rigid side-action hook |
| ✓ | Ribs and Bosses |
|---|---|
| ☐ | Rib thickness 40–60% of nominal wall |
| ☐ | Rib height ≤ 3× wall thickness |
| ☐ | Rib base fillet radius ≥ 0.25× rib thickness |
| ☐ | Bosses not adjacent to outer walls (minimum 2× wall gap) |
| ☐ | Boss wall thickness 40–60% of nominal wall |
| ☐ | Boss height ≤ 2× boss outer diameter |
| ✓ | Gate and Parting Line |
|---|---|
| ☐ | Gate location proposed and approved — not on Class-A cosmetic surfaces |
| ☐ | Weld line locations predicted (Moldflow recommended for structural parts) |
| ☐ | Weld lines located away from high-stress zones |
| ☐ | Parting line placement defined — at geometric edges where possible |
| ☐ | No stepped parting lines on Class-A surfaces |
| ✓ | Material and Shrinkage |
|---|---|
| ☐ | Material specification confirmed (grade, filler, color) |
| ☐ | Shrinkage rate documented and applied to mold cavity dimensions |
| ☐ | Anisotropic shrinkage considered for glass-filled or long-fiber materials |
| ☐ | Material compatibility with mold steel confirmed (corrosive materials → stainless) |
| ✓ | Cooling and Ejection |
|---|---|
| ☐ | Cooling circuit layout reviewed — uniform temperature distribution targeted |
| ☐ | Ejector pin locations on structural/non-cosmetic surfaces |
| ☐ | Sufficient ejector pin area to prevent deformation at ejection |
| ☐ | No undercut or sharp re-entrant geometry in ejection direction |
Ready to Start Your Injection Molding Project?
- All of your files are safe and confidential.
FAQs
DFM (Design for Manufacturability) for injection molding is the process of reviewing and optimizing a plastic part's 3D design before any mold steel is machined. The goal is to identify features that would cause manufacturing problems, cost overruns, or quality failures — and fix them when changes are still inexpensive. A structured DFM review typically reduces tooling costs by 20–40% and cuts T1 sampling iterations from 5+ down to 1–2.
The minimum draft angle for injection molding depends on the surface finish: polished or Class A surfaces require at least 0.5° per side; standard semi-gloss surfaces require 1.0° per side; light mold textures (e.g. MT-11000) require 1.5° per side; and heavy textures (MT-11020) require 3.0°–5.0° per side. Deep cavities over 75 mm depth require a minimum of 2.0° per side. As a general rule, 1–2 degrees per side is a safe starting point for most materials.
Recommended wall thickness depends on the material: ABS is 1.5–4.5 mm, Polypropylene (PP) is 1.0–3.8 mm, Polycarbonate (PC) is 2.0–3.5 mm, Nylon PA66 is 1.5–3.0 mm, and POM/Acetal is 1.5–3.0 mm. A practical range for most engineering thermoplastics is 1.5 mm to 3.5 mm. The most important rule is to keep wall thickness uniform — variations greater than 25% of nominal thickness cause sink marks, warpage, and extended cycle times.
Sink marks in injection molded parts are primarily caused by uneven wall thickness. Thick sections cool more slowly than surrounding areas, causing the surface to depress inward as the material shrinks. The most common causes are: bosses placed directly against outer walls creating thick junctions, rib or boss thickness exceeding 60% of the nominal wall, and sudden wall thickness transitions without gradual tapers. The fix is to keep ribs and bosses at 40–60% of nominal wall thickness and add gaps between bosses and outer walls.
An undercut is any feature that cannot be formed by the two main mold halves opening in a straight line — examples include side holes, external threads, snap-fit clips, and recesses on side walls. Undercuts are handled using: side actions (cams/sliders) for external recesses at $800–$3,500 per action; lifters for internal undercuts at $600–$2,500 each; hand-loaded inserts for low-volume parts; or redesigning the part to eliminate the undercut entirely. The most cost-effective approach is usually to redesign — for example, converting a side snap-fit to a compliant beam snap-fit in the main draw direction.
Gate location determines how plastic flows into the mold and directly affects weld line position, sink marks, air traps, and surface appearance. Gates should be positioned to fill from thick to thin sections, avoiding cosmetic surfaces where a vestige mark would be visible. For structural parts, especially glass-filled materials, gate location controls where weld lines form — weld lines can reduce tensile strength by 35% or more, so they must be located away from high-stress zones. Moldflow simulation is recommended for Class-A and structural parts to predict weld line locations before mold cutting.
A professional DFM review for injection molding typically takes 1–3 business days and is often offered free of charge by injection molding suppliers as part of the quoting process. At RpProto, DFM analysis is provided at no cost within 48 hours of receiving a 3D CAD file (STEP, IGES, SolidWorks, or CATIA format). The review identifies critical issues and delivers an annotated PDF report before tooling begins. The cost of not doing a DFM review is far higher: fixing a design flaw after mold steel is cut typically costs $5,000–$50,000, versus $50–$500 to fix the same issue during the design phase.
The best plastic material for injection molding depends on the application requirements: ABS and PC/ABS blends are best for general impact resistance; PP and HDPE for chemical resistance; PA66-GF (glass-filled nylon) and PEEK for high-temperature applications above 120°C; PC and PMMA (acrylic) for optical clarity; PP and ABS for low-cost commodity parts; and PP, HDPE, or PETG for food-contact or FDA-compliant parts. Material choice also affects cycle time, tooling requirements, and shrinkage rate, so it must be evaluated as part of the full DFM process.
