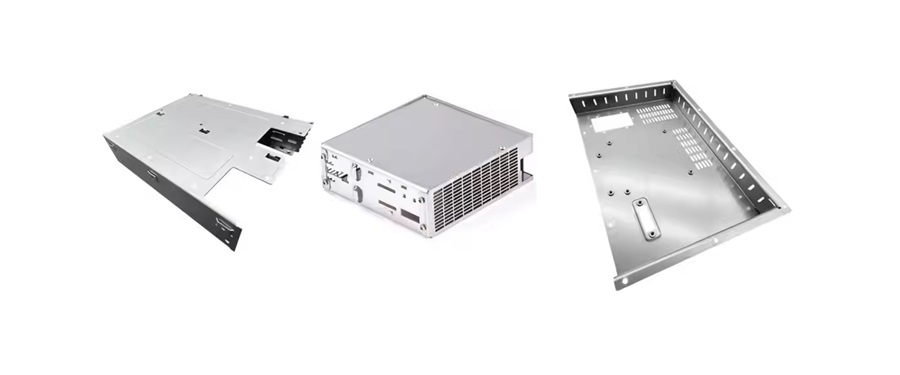

Sheet Metal Prototyping Services
Our Sheet Metal Prototyping Capabilities
At RpProto, we offer a comprehensive range of sheet metal prototyping services tailored to meet the needs of industries that require high-quality, rapid-turnaround parts. These services includes laser cutting, bending, riveting, drilling, welding, sheet metal forming, assembly, etc. We also offer Surface Treatment includes Brushing, Polishing, Anodizing, Powder Coating, Plating, Silk print (Logo), Laser marking.
By offering these advanced sheet metal prototyping services, RpProto ensures that clients receive high-quality and accurate custom Sheet Metal Prototype that meet their exact specifications. Whether for a one-off prototype or a small production run, I strive to provide excellence in every step of the process.
Lead Times
Standard Prototyping: 3 to 10 days.
Rush Orders: We can expedite production.
Rapid Prototyping Process
Sheet Metal Cutting
RpProto provides precise sheet metal cutting services using laser cutting and CNC punching, allowing for high-speed production and accuracy in handling complex designs.
- Machinery and Tools Used:
- Laser Cutting Machines: Ensure smooth edges and high tolerance levels, particularly for intricate designs.
- CNC Punching Machines: Used for high-speed punching, allowing me to handle various materials like aluminum, stainless steel, and mild steel.
- Capabilities:
- Material thicknesses ranging from 0.5mm to 6mm.
Sheet Metal Bending
Bending is essential for creating angled and curved parts from flat metal sheets. Our state-of-the-art press brakes ensure precision bending for complex components while maintaining material strength and integrity.
- Machinery and Tools Used:
- CNC Press Brakes: Offer precision control over angles and dimensions, ensuring repeatability and accuracy for every piece.
- Manual Bending Tools: For highly customized and delicate projects requiring detailed adjustments.
- Capabilities:
- Bending angles from 0° to 135°.
- Accuracy within ±0.2mm on bends.
Sheet Metal Forming
Our forming services allow the creation of three-dimensional parts from flat sheets, shaping them into various contours and forms with consistent precision. This is ideal for components with complex curves or non-standard shapes.
- Machinery and Tools Used:
- Stamping Presses: For high-speed forming with intricate designs.
- Deep Drawing Machines: Suitable for parts requiring a high degree of depth and strength without compromising material integrity.
- Capabilities:
- High-tolerance forming for complex and detailed parts.
Tolerances
RpProto prides on delivering parts with tight tolerances and high precision, making my services suitable for industries such as aerospace, automotive, electronics, and medical equipment.
- Laser cutting: ±0.1mm
- Bending: ±0.1mm – ±0.3mm, depending on the bends.
- Forming: ±0.5mm, depending on the material.
Surface Treatment
Quality Control Processes
To ensure the highest quality, RpProto follow a stringent quality control process throughout production:
- Initial Material Inspection: All incoming materials are checked for thickness, strength, and surface finish before starting the process.
- In-Process Inspections: Regular inspections are carried out during cutting, bending, and forming stages to ensure accuracy and consistency.
- Final Quality Check: Every finished prototype undergoes a thorough quality check, including dimensional accuracy, surface finish, and structural integrity, before being shipped to clients.
Certifications: I adhere to international standards such as ISO 9001 to maintain quality throughout the production process.
Advantages of Rapid Sheet Metal Prototyping
Why Choose Sheet Metal Prototyping? Sheet metal prototyping offers speed, accuracy, and cost-effectiveness, . Whether for functional testing, design validation, or small batch production, sheet metal prototyping is a versatile solution that meets a wide range of industrial needs.
Rapid Production
Using laser cutting, CNC punching, and press braking, we can create complex prototypes quickly and efficiently.
Because there’s no need for custom tooling or molds, the turnaround time for sheet metal prototypes is significantly shorter than other methods like injection molding or casting.
Precision Fabrication
Sheet metal prototyping ensures high accuracy in terms of dimensions and tolerances, especially when using CNC-controlled machinery.
Consistency Across Multiple Iterations: With CNC machines and advanced forming techniques, I can produce multiple parts with the same level of precision and repeatability.
No Need for Tooling
sheet metal prototyping doesn’t require expensive tooling, molds, or fixtures.
Once the prototype is approved, sheet metal processes can easily scale up to small or medium production runs.
Materials Used in Sheet Metal Prototyping
| Material | Properties | Common Grades |
|---|---|---|
| Aluminum | Lightweight, corrosion-resistant, and highly conductive. | Aluminum 6061 Aluminum 5052 |
| Stainless Steel | Strong, corrosion-resistant, and durable. | Stainless Steel 304 Stainless Steel 316 |
| Mild Steel (Carbon Steel) | Strong and durable but prone to rust without protective coatings. | Mild Steel 1018 Mild Steel 1020 |
| Galvanized Steel | Mild steel coated with zinc for corrosion protection. | Commonly used in HVAC systems and outdoor enclosures. |
| Copper | Highly conductive and corrosion-resistant. | Used in electrical components and plumbing systems. |
| Brass | Copper-zinc alloy, known for its corrosion resistance and aesthetics. | Used in decorative hardware and plumbing fittings. |
| Titanium | Extremely strong, lightweight, and corrosion-resistant. | Used in aerospace, medical devices, and high-performance parts. |
Industries Served with Sheet Metal Prototypes
Precision sheet metal prototype fabrication are used in various industries, thanks to their versatility, precision, and durability. These industries rely on sheet metal prototyping for rapid product development, functional testing, and small-scale production before committing to full-scale manufacturing. Here are some of the industries served with sheet metal prototypes:
Aerospace Industry
- Aircraft structural components
- Engine parts
- Aerospace brackets and enclosures
Automotive Industry
- Car body panels
- Chassis components
- Exhaust systems
Medical Devices
- Surgical instruments
- Medical equipment enclosures
- Implants and prosthetics
Consumer Electronics
- Laptops, smartphones, and tablet casings
- Wearable device components
- Power supply and battery enclosures
Equipment and Machinery
- Custom machine components
- Structural supports
- Enclosures for heavy machinery
Energy Industry
- Solar panel mounts
- Wind turbine components
- Battery storage systems
Telecommunications Industry
- Antenna mounts
- Tower enclosures
- Racks and cabinets for telecom equipment
Architecture and Construction
- Metal façades and roofing systems
- Custom metal fixtures and fittings
- HVAC and ductwork systems
Frequently Asked Questions (FAQs) on Sheet Metal Prototyping
Sheet metal prototyping involves creating early-stage models or prototypes of metal parts using processes like cutting, bending, and forming. These prototypes are used for testing, design validation, and functional evaluations before full-scale production.
Common materials used in sheet metal prototyping include:
- Aluminum: Lightweight and corrosion-resistant.
- Stainless Steel: Strong and durable, ideal for applications requiring corrosion resistance.
- Mild Steel: Affordable and easy to work with but may require protective coatings to prevent rust.
- Galvanized Steel: Mild steel with a zinc coating for added corrosion resistance.
- Copper and Brass: Excellent conductivity and machinability for electrical and decorative applications.
- Titanium: High strength-to-weight ratio and corrosion-resistant, ideal for aerospace and medical devices.
Key processes include:
- Cutting: Using laser cutting or CNC punching to create precise shapes.
- Bending: Using press brakes to form angles and curves in the metal.
- Forming: Shaping the metal into complex three-dimensional forms using stamping or deep drawing.
- Welding and Assembly: Combining different metal components into a single structure.
The primary benefits of sheet metal prototyping are:
- Speed: Rapid turnaround times compared to traditional methods like casting or molding.
- Cost-Effectiveness: No need for expensive tooling or molds, making it affordable for small production runs.
- Accuracy: High precision in cutting, bending, and forming, ensuring tight tolerances and repeatability.
- Versatility: Suitable for a wide range of applications across industries like aerospace, automotive, electronics, and more.
Lead times can vary depending on the complexity of the design and the volume of prototypes. Typically, I can deliver sheet metal prototypes within 3 to 10 days. Expedited services are available for urgent projects.
Sheet metal prototypes are widely used in industries such as:
- Aerospace
- Automotive
- Electronics
- Medical Devices
- Industrial Equipment
- Renewable Energy
- Defense and Military
- Telecommunications
- Architecture and Construction
The thickness of sheet metal used in prototyping typically ranges from 0.5mm to 6mm, depending on the material and the specific requirements of the project. Thinner materials are used for lightweight applications, while thicker materials provide additional strength and durability.
Sheet metal prototyping processes can achieve very tight tolerances:
- Cutting: ±0.1mm
- Bending: ±0.2mm
- Forming: ±0.5mm
- Welding and Assembly: ±1.0mm, depending on the complexity of the part.
Yes, sheet metal prototypes are often used for functional testing to evaluate the mechanical properties, durability, and performance of the design in real-world conditions. This allows for adjustments before moving to full-scale production.
Yes, sheet metal prototyping is highly cost-effective for low-volume production because it does not require expensive tooling or molds. The processes used, such as CNC cutting and bending, are adaptable to producing small batches without significant setup costs.
Prototyping focuses on creating a small number of parts to test and validate the design. Production, on the other hand, involves large-scale manufacturing of the final design. Prototyping allows for design iterations and testing, while production ensures consistent quality for mass quantities.
Prototyping focuses on creating a small number of parts to test and validate the design. Production, on the other hand, involves large-scale manufacturing of the final design. Prototyping allows for design iterations and testing, while production ensures consistent quality for mass quantities.
Quality control is crucial in sheet metal prototyping. My process includes:
- Material Inspection: Verifying the quality of materials before production.
- In-Process Checks: Regular inspections during cutting, bending, and forming to ensure accuracy.
- Final Inspection: A thorough check of dimensions, tolerances, and surface finish before delivery.
- I also adhere to industry standards like ISO 9001 for quality management.
Yes, I offer a variety of surface finishes to meet specific requirements. Common finishes include:
- Powder Coating: For added durability and aesthetic appeal.
- Anodizing: For aluminum parts to increase corrosion resistance.
- Polishing: For a smooth, reflective finish.
- Brushing: For a matte, textured surface.
- Plating: For enhanced corrosion resistance or decorative purposes.
Yes, prototypes can often be modified after production, depending on the specific process and material. Simple modifications, such as additional cuts or bends, can be made to improve the design before moving to full production.
The maximum size of a sheet metal prototype depends on the machinery used. Typically, I can work with sheet metal up to 2 meters (6.5 feet) in length, but larger or custom sizes may be accommodated depending on project requirements.
