What Is Surface Roughness?
Surface roughness describes the microscopic peaks and valleys left on a machined surface as a result of the cutting process. Even a surface that looks perfectly smooth to the naked eye has these irregularities when examined at the micro level — they are an inherent product of every subtractive manufacturing process.
These tiny imperfections are not merely cosmetic. They directly influence:
- Friction and wear — rougher surfaces generate more friction and wear faster under load
- Fatigue life — stress concentrations form at peaks and valleys, acting as crack initiation sites under cyclic loading
- Sealing performance — both too rough and too smooth can compromise gasket and O-ring seals
- Corrosion resistance — rough surfaces trap contaminants and moisture, accelerating oxidation
- Coating adhesion — paint, anodizing, and plating adhesion depend on controlled surface texture
- Manufacturing cost — finer finishes require more time, more steps, and better tooling
Surface roughness is a functional specification, not just a finishing detail. Getting it wrong risks accelerated wear, leaking seals, fatigue cracks — or unnecessary cost from over-specifying.
Roughness vs. Finish vs. Texture
These three terms are often used interchangeably, but they are technically distinct:
| Term | Definition | Scope |
|---|---|---|
| Surface Texture | All deviations from an ideal surface — encompasses roughness, waviness, and lay | Broadest |
| Surface Roughness | Fine, closely spaced irregularities (peaks and valleys) created by the cutting tool. Quantifiable, measurable. | Quantified |
| Surface Finish | General term covering roughness and the overall quality / appearance after all processing steps | General |
When engineers say “specify the surface finish,” they usually mean defining a target roughness value — such as Ra 1.6 µm. Roughness is the micro-level texture caused by the tool’s cutting action. Waviness is longer-wavelength undulation from vibrations or thermal effects. Lay is the predominant direction of the surface pattern.
Key Parameters: Ra, Rz, and More
Ra — Arithmetic Average Roughness
Ra is the arithmetic mean of the absolute deviations of the surface profile from the mean line, over a defined sampling length. It is the most widely used parameter worldwide.
Ra = (1/L) × ∫|y(x)| dx
Ra is the default specification because it gives a consistent, reproducible value across instruments and correlates well with functional performance. Its main limitation: it’s an average, so it does not capture extreme outliers. Two surfaces can share the same Ra value but look completely different in cross-section.
Rz — Mean Roughness Depth
Rz measures the average vertical distance between the five highest peaks and five deepest valleys over a sampling length. More sensitive to extreme surface features — critical where sealing, fatigue resistance, or lubricant retention matters.

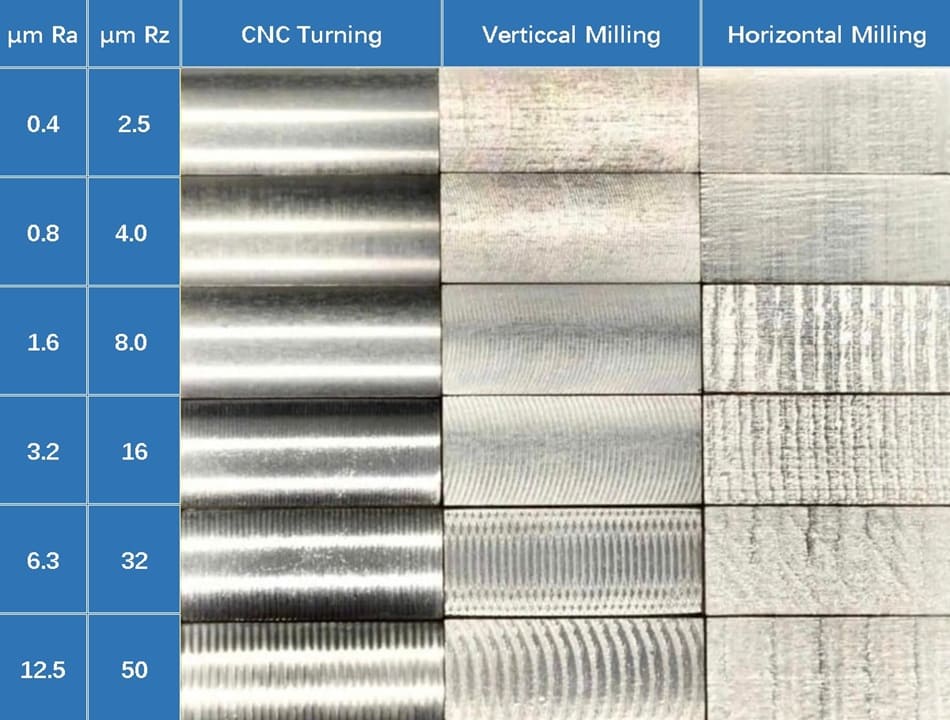

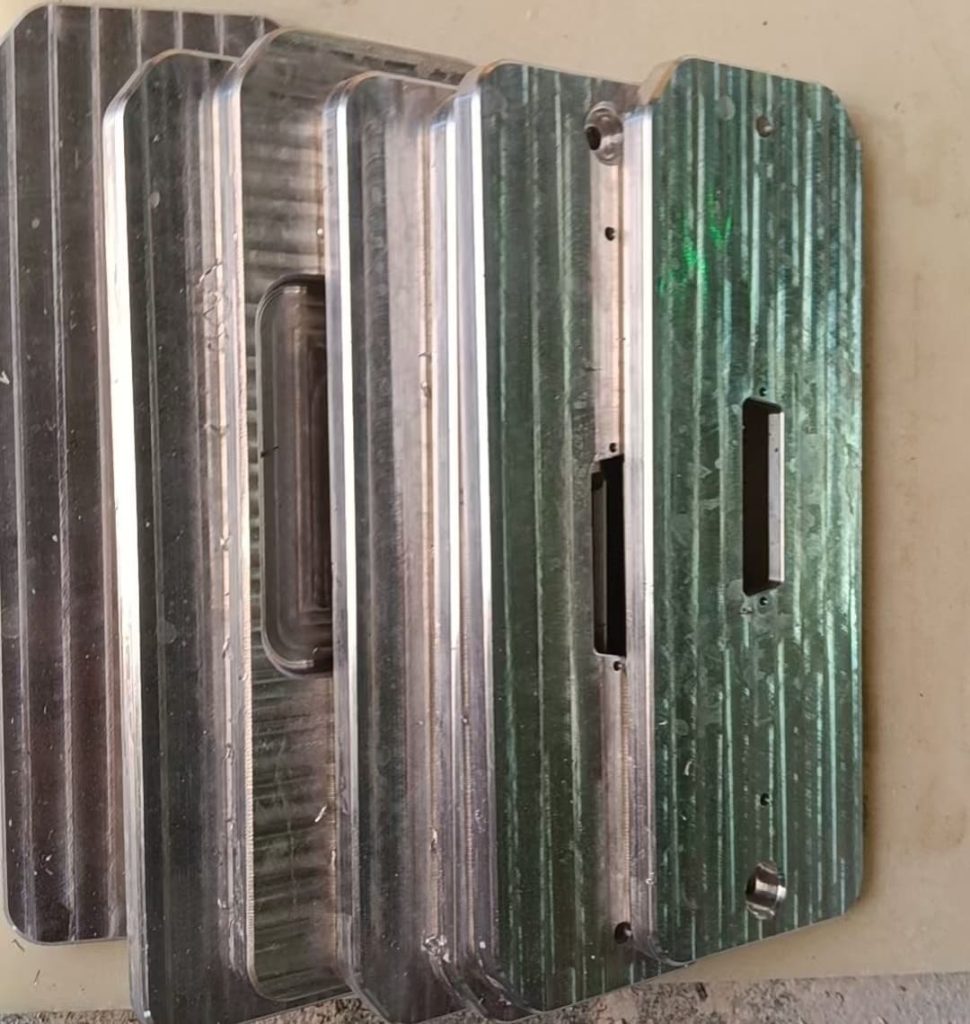

Standard Surface Roughness Grades
Most CNC service providers, including RpProto, offer four standard surface roughness grades. Each serves distinct functional requirements at different cost levels.
Surface Roughness Chart
Typical Ra values achievable by different manufacturing processes, with their common applications. The highlighted rows cover over 90% of CNC machining applications.
| Ra (µm) | Ra (µin) | Typical Process | Typical Applications |
|---|---|---|---|
| 25.0 | 1000 | Rough sawing, heavy milling | Raw stock, non-functional surfaces |
| 12.5 | 500 | Rough turning, rough milling | Clearance surfaces, rough castings |
| 6.3 | 250 | Coarse milling, turning | Heavy structural components |
| 3.2 | 125 | Standard CNC milling/turning | General-purpose parts DEFAULT |
| 1.6 | 63 | Fine CNC milling/turning | Mating surfaces, precision fits |
| 0.8 | 32 | Fine machining + light grinding | Seals, bearings, gears |
| 0.4 | 16 | Grinding, polishing | High-precision seals, optics mounts |
| 0.2 | 8 | Fine grinding, lapping | Precision gauges, optical surfaces |
| 0.1 | 4 | Lapping, superfinishing | Precision bearings, gauge blocks |
| 0.025 | 1 | Superfinishing, polishing | Optical components, silicon wafers |
How Surface Roughness Is Measured
Contact Methods (Profilometer / Stylus)
The industry standard. A fine diamond stylus is dragged across the surface perpendicular to the lay — vertical movement is converted to an electrical signal and processed to calculate Ra, Rz, and other parameters per ISO 4287 and ASME B46.1.- Direct, highly accurate — gold standard for manufacturing QC
- Works on most opaque materials
- Stylus tip radius limits resolution on very fine features
Non-Contact Methods
Optical profilometry uses light (laser or white-light interferometry) to map surface height without touching the part. Faster, non-destructive, capable of sub-nanometer resolution.- Laser confocal microscopy
- White light interferometry (WLI)
- Focus variation microscopy
Measurement Standards
| Standard | Scope |
|---|---|
| ISO 4287 | Definitions and parameters for surface texture |
| ISO 4288 | Rules for assessment of surface texture |
| ASME B46.1 | American standard for surface texture |
| ISO 1302 | How to indicate surface texture on technical drawings |
Surface Roughness Symbols on Drawings
Communicating surface roughness on a technical drawing requires standardized symbols (per ISO 1302). Misreading or omitting these is a common cause of non-conforming parts.
Symbol Variants
| Symbol | Meaning |
|---|---|
| Basic “√” (check mark) | Surface must be machined — material removal required |
| “√” with a circle | Material removal prohibited — casting/forging finish only |
| “√” with an overline | Material removal is mandatory |
What the Numbers Mean
A full callout places values around the symbol: the Ra value (in µm) above the symbol, the manufacturing process to the right, sampling length below the horizontal bar, and lay direction as a subscript symbol.
Drawing Best Practices
- Always specify roughness in µm, not microinches, unless working to ASME standards
- Use a global note (“ALL OVER Ra 3.2 UNLESS OTHERWISE NOTED”) and only call out surfaces that differ
- For critical interfaces — sealing grooves, bearing bores, mating flanges — always specify Ra explicitly
- When both Ra and Rz matter (sealing surfaces), specify both on the drawing
Factors That Affect Surface Roughness
1. Cutting Parameters
Feed rate has the single biggest impact on Ra in turning — as feed increases, cusp height increases, producing a rougher surface. Cutting speed generally improves finish at higher values. Depth of cut affects vibration and tool deflection — lighter finishing passes yield smoother results.
2. Tool Geometry
A larger nose radius reduces theoretical feed mark height dramatically. Wiper inserts with a flat or very large-radius edge can halve Ra in turning operations. Tool sharpness and wear state are equally critical — worn tools reliably produce rougher surfaces.
3. Workpiece Material
| Material | Surface Finish Behavior | Min Achievable Ra |
|---|---|---|
| Aluminum alloys | Excellent machinability; fine finishes readily achievable | 0.4 µm (machining) |
| Stainless steel 304/316 | Work-hardens; built-up edge tendency; needs sharp tools | 0.8 µm (machining) |
| Titanium | Low thermal conductivity; heat buildup; requires coolant | 0.8 µm (machining) |
| Hardened steel (>45 HRC) | Requires CBN tooling or grinding for fine finishes | 0.4 µm (grinding) |
| Brass / Copper | Excellent machinability; very fine finishes achievable | 0.4 µm (machining) |
| Plastics (Delrin, PEEK) | Prone to smearing; sharp tools and coolant essential | 0.8 µm (material-dependent) |
4. Machine Rigidity and Chatter
Vibration (chatter) is the enemy of surface finish — it produces regular wave patterns (chatter marks) and dramatically worsens Ra. Causes include worn spindle bearings, excessive tool overhang, thin workpiece walls resonating during cutting, or incorrect speeds hitting a resonant frequency.
5. Coolant and Lubrication
Cutting fluids reduce heat, flush chips, and lubricate the tool-workpiece interface. Essential for stainless steel, titanium, and achieving Ra 0.8 µm or below on most materials.
6. Machining Strategy
Climb milling generally produces better surface finish than conventional milling. 5-axis machining maintains better tool orientation on complex contours, reducing cusp height. Always separate roughing and finishing operations — a dedicated finishing pass with optimized parameters is essential for consistent Ra.
How to Choose the Right Surface Roughness
1. Identify the surface function
| Surface Function | Recommended Ra |
|---|---|
| Static, non-mating structural surface | 3.2 µm |
| Mating surface, bolted joint (no seal) | 1.6–3.2 µm |
| Sliding or rotating contact (bearings, bushings) | 0.4–0.8 µm |
| Hydraulic / pneumatic sealing bore or groove | 0.4–0.8 µm |
| Static O-ring or gasket face | 0.8–1.6 µm |
| Cosmetic / consumer-visible surface | 0.4–0.8 µm |
2. Confirm achievability for your material
3. Factor in cost vs. function
Ra 3.2 µm → baseline · Ra 1.6 µm → +5% · Ra 0.8 µm → +10–20% · Ra 0.4 µm → +15–30%.
Specify the roughness your application requires functionally. Over-specifying is one of the most common and costly DFM mistakes.
