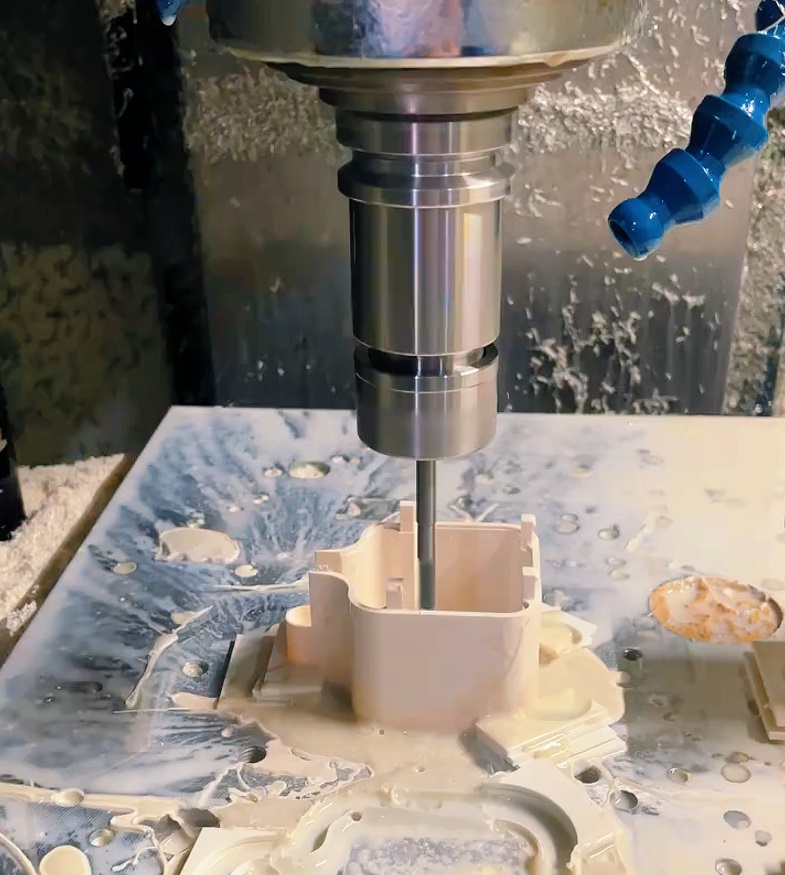

PEEK CNC Machining Services for High-Performance Parts

PEEK (Polyether ether ketone) CNC machining is a subtractive manufacturing process that uses computer-controlled cutting tools to shape PEEK thermoplastic into precision parts. PEEK is chosen for high-performance applications because it maintains exceptional mechanical strength up to 260°C, offers outstanding chemical resistance to solvents and acids, and provides excellent dimensional stability.

PEEK CNC machining can achieve tight tolerances as precise as ±0.005 mm (±0.0002 inches) using advanced 5-axis CNC milling centers. Standard tolerances for most PEEK parts range from ±0.01 mm to ±0.05 mm depending on part geometry, wall thickness, and feature complexity.

For medical-grade PEEK implants or aerospace structural components, tighter tolerances are achievable with optimized cutting parameters and temperature-controlled machining environments.

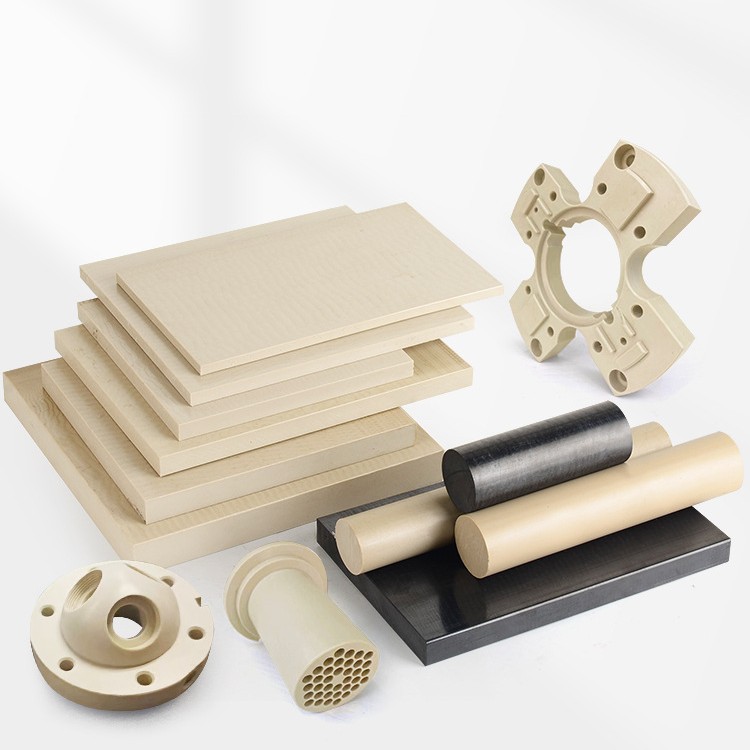

Unfilled PEEK offers the best chemical resistance and electrical insulation with tensile strength of 90–100 MPa — ideal for general-purpose chemical environments.

Glass-filled PEEK (GF30) — reinforced with 30% glass fiber — provides enhanced stiffness and tensile strength of 120–157 MPa with reduced thermal expansion, suited for structural load-bearing components.

Carbon-filled PEEK (CF30) delivers the highest tensile strength of 210–245 MPa with maximum rigidity and lowest thermal expansion — best for high-stress aerospace and industrial structural parts. Note: filled grades are more abrasive to machine and have reduced chemical resistance compared to unfilled PEEK.

Yes. Medical-grade PEEK is USP Class VI certified and FDA compliant, making it one of the most widely used materials for medical implants. Its key advantages include:

• Biocompatibility — no adverse tissue reactions
• Radiolucency — transparent to X-rays, unlike titanium, enabling post-operative imaging
• Sterilization resistance — compatible with autoclaving, gamma radiation, and ETO gas
• Bone-matching modulus — mechanical properties close to human cortical bone, reducing stress shielding

Medical-grade PEEK is widely used for spinal implants, orthopedic cages, dental devices, and surgical instrument handles.

PEEK offers significant advantages over metals in specific applications. Compared to aluminum, PEEK provides superior chemical resistance, lighter weight, better electrical insulation, and zero corrosion risk. Compared to titanium, PEEK is significantly lighter (density 1.32 g/cm³ vs 4.51 g/cm³), radiolucent for medical imaging, and more cost-effective to machine.

However, metals generally offer higher absolute strength and better thermal conductivity. PEEK is the preferred choice when the application requires weight reduction, electrical insulation, chemical resistance, or biocompatibility alongside moderate-to-high mechanical performance.

CNC machined PEEK parts can achieve a range of surface finishes:

• As-machined: Ra 1.6–3.2 μm — standard finish for most functional parts
• Fine machining: Ra 0.4–0.8 μm — suitable for sealing surfaces and bearing contact faces
• Polished (medical grade): Ra ≤ 0.2 μm — required for implantable devices
• Sandblasted: uniform matte texture for improved aesthetics
• DLC or PTFE coating: applied to enhance lubricity and wear resistance in tribological applications

Note: PEEK cannot be anodized like aluminum, but its natural surface is already chemically inert.

Lead times for custom PEEK CNC machined parts vary by complexity and quantity:

• Simple prototypes (1–5 pcs): 3–5 business days
• Medium-complexity parts with tight tolerances: 5–10 business days
• Low-volume production (10–500 pcs) or special grades (medical/CF30): 10–15 business days
• Rush service: available for urgent prototype needs

Providing a complete 3D CAD file (STEP or IGES) with a technical drawing at time of inquiry ensures the most accurate lead time and quote.

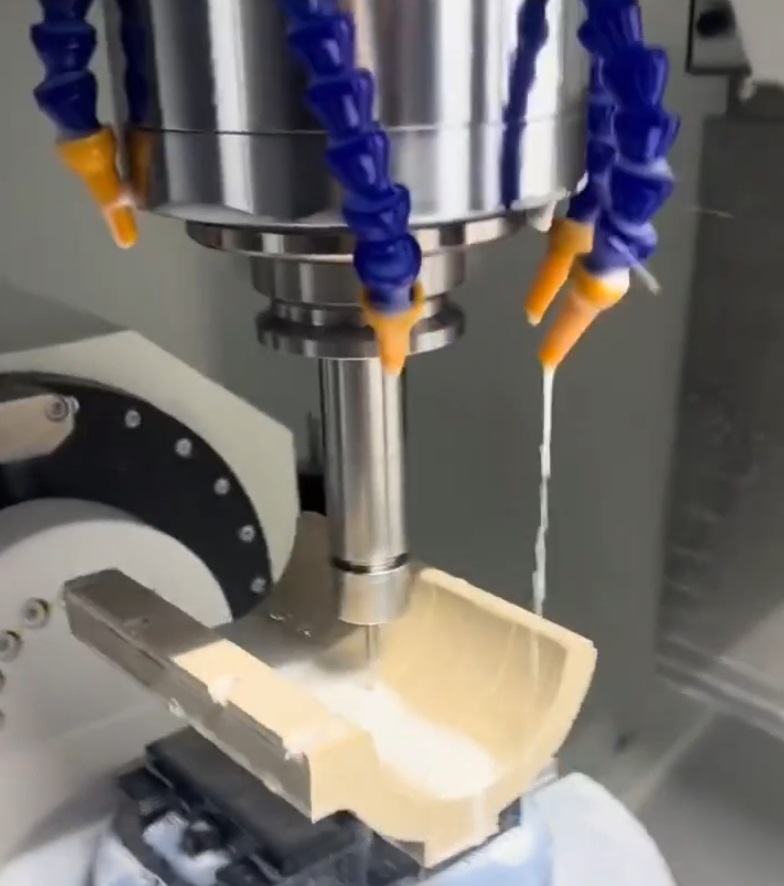

Yes. PEEK machines exceptionally well on 5-axis CNC milling centers, enabling complex undercuts, compound-angle features, deep pockets, and organic contoured surfaces in a single setup — eliminating repositioning errors common in 3-axis work.

PEEK's low thermal expansion, good chip evacuation properties, and dimensional stability make it ideal for tight-tolerance 5-axis work. Common complex geometries include:

• Spinal implant cages with lattice structures

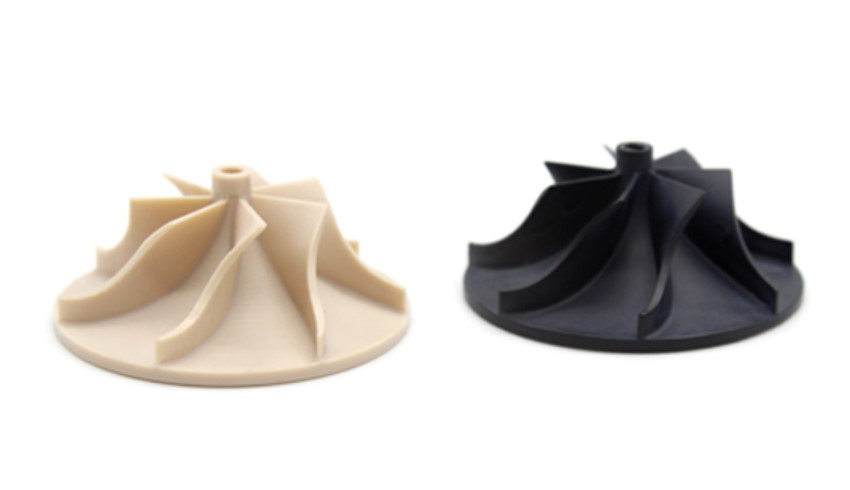

• Impellers with compound blade angles
• Multi-port valve bodies with internal channels
• Precision instrument housings

PEEK CNC machined components are essential across multiple demanding industries:

• Aerospace & Defense: lightweight structural brackets, cable insulation, seals — thermal stability critical
• Medical & Healthcare: spinal implants, surgical instruments, dental devices — biocompatibility critical

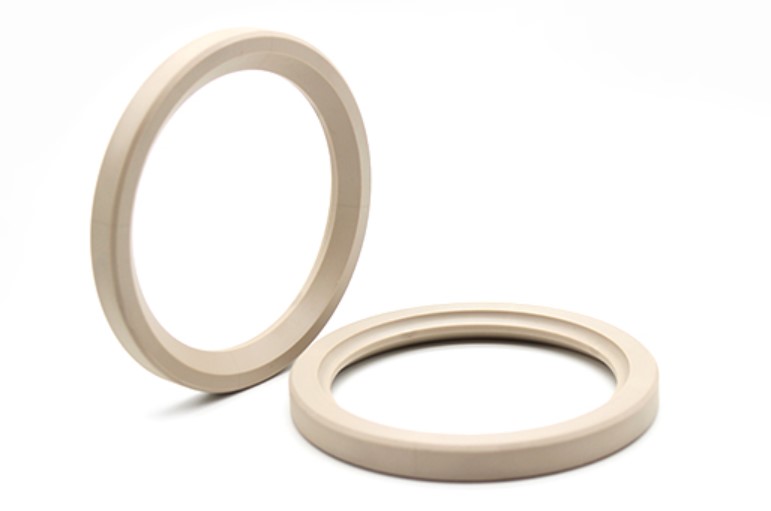

• Oil & Gas: valve seats, pump components, downhole tools — chemical and pressure resistance critical
• Semiconductor: wafer handlers, test fixtures, insulators — clean-room compatibility and chemical resistance

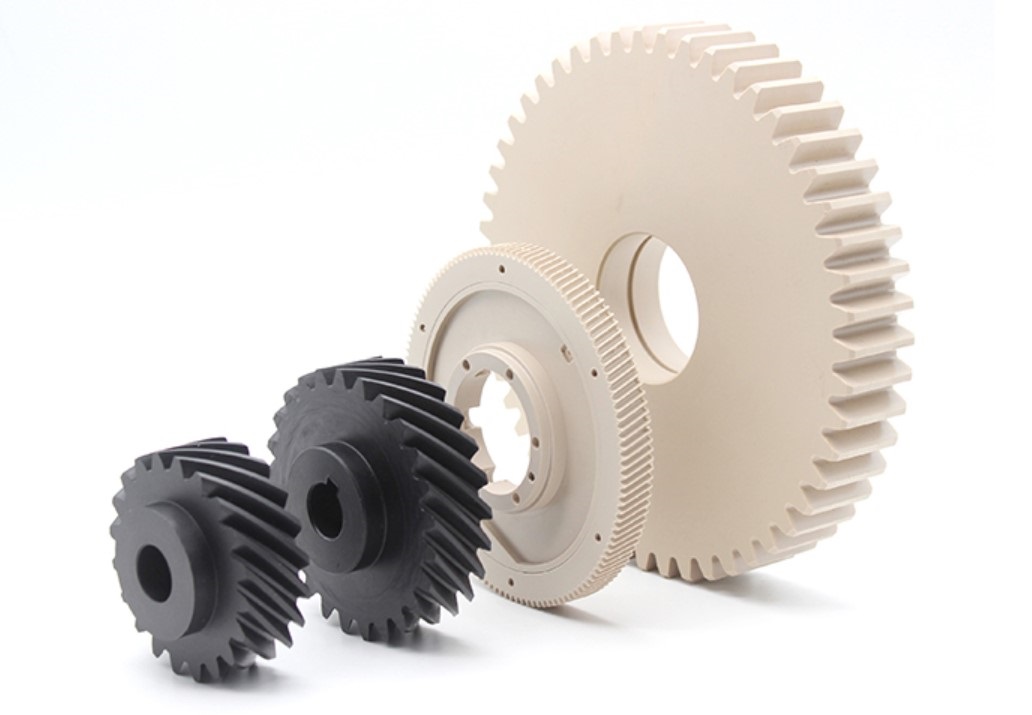

• Automotive: gears, bearings, sensor housings — high-temperature under-hood performance

The choice depends primarily on production volume, part complexity, and budget:

Choose CNC machining when:
• Prototype or low-volume production (1–500 parts)
• Very tight tolerances or thick-walled parts required
• Specific material grade from solid stock (medical or CF30 PEEK)
• Fast turnaround needed — no tooling lead time

Choose injection molding when:
• High-volume production (1,000+ parts) where tooling cost is amortized
• Thin-walled, complex net-shape parts justified by volume
Note: PEEK injection molds cost $20,000–$80,000+ and require precise process control at 370–400°C processing temperature.
